Webhooks

A webhook is a URL that posts into one channel. Anything that can send an HTTP request can use it: a CI job, a cron script, a monitoring tool. There's no SDK, no login and no socket to keep open. You POST some JSON and a message shows up.

A webhook can only post. It can't read the channel, reply to anyone or react to messages. If you need any of that, write a bot instead.

Make one

You need the Manage webhooks permission on the server.

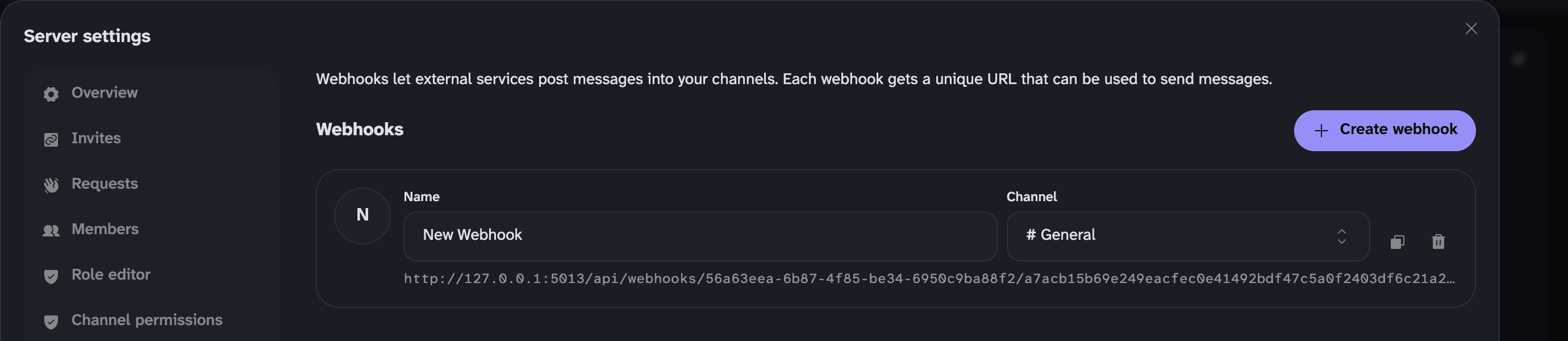

1. Open the server menu (the three dots next to the server name) and pick Server settings
2. Go to Webhooks and press Create webhook
3. Give it a name, pick the channel it posts to, and click the avatar to give it a picture
4. Use the copy button to copy its URL

Name, channel and picture save as you change them. The trash button deletes the webhook, and its URL stops working straight away.

The URL

https://<your server>/api/webhooks/<webhook id>/<token>

The token is the whole of the security. Anyone who has the URL can post as the webhook, so keep it out of public repositories and logs. There's no way to rotate a token. If a URL leaks, delete the webhook and make a new one.

Send a message

curl -X POST 'https://gryt.example.com/api/webhooks/WEBHOOK_ID/TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{"text": "Hello from curl"}'

That's a whole message. text takes the same markdown as the chat box. Add cards for something with a title, colour, fields and pictures:

curl -X POST 'https://gryt.example.com/api/webhooks/WEBHOOK_ID/TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
    "display_name": "Backups",
    "cards": [{
      "title": "Backup finished",
      "description": "All 3 volumes copied in 2m 41s.",
      "color": "#3fb27f"
    }]
  }'

The server answers once the message is posted:

{
  "message_id": "7999e063-ccdb-46d3-8cd3-b1decc35dfd6",
  "conversation_id": "general",
  "warnings": []
}

Try a card

Edit the JSON and the card on the right redraws. It's drawn with the same WebhookCard component from @gryt/ui that the app uses, and the checks under the editor follow the server's rules, so a payload that passes here passes there. Copy as curl gives you a command with a placeholder URL to swap for yours.

Two things differ from the app. The preview loads pictures straight from the URLs you type, from your own browser. Gryt doesn't: the server downloads them once when the message is posted (see Pictures). And the preview only does bold, italics, strikethrough, inline code and links. The app's markdown also does code blocks, lists, emoji and mentions.

Payload

This reference is read from the server's own OpenAPI document, openapi/webhooks.json, which is generated from the schema the route checks payloads with. A check in CI fails when this page and that file disagree.

Message

A message needs text, at least one card, or both. display_name and avatar_url only change this one message. The webhook's own name and picture stay as they are.

Card

A card needs at least one of title, description, fields, image_url or author. The title, description, author name, footer text and every field's name and value count towards a limit of 6000 characters, added up across all the cards in the message.

Timestamps show in each reader's own time zone.

Author

Field

Inline fields sit side by side as long as there's room. A field that isn't inline gets a row to itself.

Footer

Pictures

avatar_url, image_url, thumbnail_url and both icon_urls are downloaded by the Gryt server when the message is posted. It stores a copy and the message points at that copy. People reading the channel load the picture from your Gryt server and never contact the host it came from, so that host can't see who read the message or when.

That also means the picture is fixed at post time. Changing the file at the original URL afterwards changes nothing in Gryt.

• PNG, JPEG, WebP and GIF. SVG is refused. The server checks the file's bytes, not its name or Content-Type
• Up to 8 MB for image_url and thumbnail_url, 1 MB for avatar_url and the icons, and 32 MB for all the pictures in one message
• 12 seconds to download all of them
• Private and local addresses are refused, and so is a chain of more than 5 redirects
• The same URL used twice in a message is downloaded once
• avatar_url is resized to 256 px, the same as any other avatar. Card pictures keep their size

A picture that fails doesn't stop the message. It posts without that picture, and the reply lists what went wrong under warnings. Because of the downloads, a message with pictures can take a few seconds to answer.

Mentions

Only text can notify anyone. A mention is a markdown link to mention: and the member's ID:

{ "text": "Deploy failed, [@Sivert](mention:user_166ad0aa-aef6-494d-8475-9c842fbc29b2) can you look?" }

To get an ID, right-click the member in the member list and pick Copy ID.

Mentions inside cards draw like mentions but never notify, so a card listing ten commit authors doesn't ping all ten.

Older clients

A client that can't draw cards shows a single line instead. When a message has cards and no text, the server writes that line itself: the first card's title, or its author's name if it has no title, plus a count like "(+2 more)" when there are more cards. When the first card has neither, it says "Posted a card", or "Posted 3 cards".

Mentions and links are broken on purpose in that line, so it can't ping anyone or unfurl. Clients that do draw cards hide it. If you send text as well, older clients show your text and nothing else.

When it goes wrong

A refused payload posts nothing. Every problem comes back at once, up to 20, each with a path into your JSON:

{
  "error": "invalid_payload",
  "message": "The payload has 3 problems.",
  "problems": [
    { "path": "cards[0].color", "code": "invalid_color", "message": "Use #rrggbb or an integer from 0 to 16777215." },
    { "path": "cards[0].timestamp", "code": "invalid_timestamp", "message": "Invalid ISO datetime" },
    { "path": "cards[0]", "code": "empty_card", "message": "A card needs a title, description, fields, image_url or author." }
  ]
}

limit is there too when the problem is a limit. Match on code, since message is for people and can change.

Some answers have no problems list. The first two are from before cards existed, and they come back instead of invalid_payload when they're the only problem:

Older servers answer bad JSON with a 500 and "error": "internal_error" instead, and let bodies up to 2 MB through before doing the same. If you have to handle those, treat a 5xx as "check the request, then try again later".

Warnings

A message that posts can still come back with warnings:

{
  "message_id": "7999e063-ccdb-46d3-8cd3-b1decc35dfd6",
  "conversation_id": "general",
  "warnings": [
    { "path": "embeds", "code": "unknown_key", "message": "embeds isn't part of a webhook message and was ignored." },
    { "path": "cards[0].image_url", "code": "blocked", "message": "That address isn't allowed, so the picture was left out." }
  ]
}

Keys Gryt doesn't know are ignored rather than refused, so a payload written for another chat app mostly works. Log warnings from anything automated, or a missing picture goes unnoticed.

Rate limits

Each webhook gets a burst of 15 requests, then about one every 2 seconds, or 30 a minute. Go over and that webhook gets 429 for 60 seconds, with retry_after_ms saying how long is left.

It counts every request to the webhook's URL, including refused payloads, and it's per webhook rather than per caller, so two scripts sharing a URL share the limit. Bad JSON and bodies over 256 KB are turned away before they're counted. The counter lives in the server's memory and resets when it restarts. Rate limiting has the server's other limits.

Recipes

Deploy notice from GitHub Actions

Save the webhook URL as a repository secret called GRYT_WEBHOOK_URL, then add a step at the end of the deploy job:

- name: Tell Gryt
  if: always()
  env:
    GRYT_WEBHOOK_URL: ${{ secrets.GRYT_WEBHOOK_URL }}
    STATUS: ${{ job.status }}
  run: |
    if [ "$STATUS" = "success" ]; then color="#3fb27f"; else color="#e5484d"; fi
    jq -n \
      --arg status "$STATUS" --arg color "$color" \
      --arg repo "$GITHUB_REPOSITORY" --arg sha "${GITHUB_SHA::7}" \
      --arg actor "$GITHUB_ACTOR" \
      --arg url "$GITHUB_SERVER_URL/$GITHUB_REPOSITORY/actions/runs/$GITHUB_RUN_ID" \
      '{
        display_name: "Deploys",
        cards: [{
          title: "Deploy \($status): \($repo)",
          url: $url,
          color: $color,
          fields: [
            { name: "Commit", value: $sha, inline: true },
            { name: "By", value: $actor, inline: true }
          ],
          timestamp: (now | todate)
        }]
      }' |
    curl -fsS -X POST "$GRYT_WEBHOOK_URL" \
      -H 'Content-Type: application/json' --data-binary @-

jq is already on GitHub's runners. It builds the JSON for you, so a quote in a name can't break the payload.

Uptime alert from cron

A script that checks a URL and posts only when the answer changes, so a site that's down all night sends two messages instead of 500:

#!/bin/sh
# Run from cron every minute: * * * * * /usr/local/bin/check-api.sh
WEBHOOK_URL="https://gryt.example.com/api/webhooks/WEBHOOK_ID/TOKEN"
TARGET="https://api.example.com/health"
STATE=/var/tmp/check-api.state

code=$(curl -s -o /dev/null -m 10 -w '%{http_code}' "$TARGET")
[ "$code" = "200" ] && now=up || now=down
[ "$(cat "$STATE" 2>/dev/null)" = "$now" ] && exit 0
echo "$now" > "$STATE"

if [ "$now" = "down" ]; then
  title="$TARGET is down"; color="#e5484d"
else
  title="$TARGET is back"; color="#3fb27f"
fi

jq -n --arg title "$title" --arg color "$color" --arg code "$code" '{
  display_name: "Uptime",
  cards: [{
    title: $title,
    color: $color,
    fields: [{ name: "Status", value: $code, inline: true }],
    timestamp: (now | todate)
  }]
}' | curl -fsS -X POST "$WEBHOOK_URL" -H 'Content-Type: application/json' --data-binary @-

Plain text from any script

No jq, no cards. Fine for a quick "it's done":

curl -fsS -X POST "$WEBHOOK_URL" \
  -H 'Content-Type: application/json' \
  -d "{\"text\": \"Backup on $(hostname) finished at $(date -u +%H:%M) UTC\"}"

Keep anything you didn't write yourself out of a string like that. A file name with a quote in it breaks the JSON. Use jq -n --arg like the recipes above when the text comes from somewhere else.

Managing webhooks over the API

The Webhooks tab uses these, and so can you, with a member's access token that has Manage webhooks. They're listed in Server API, and the request and response shapes are in the same openapi/webhooks.json.
